PRECISION SHOULDER SCREWS SLOTTED HEAD (American Standard)

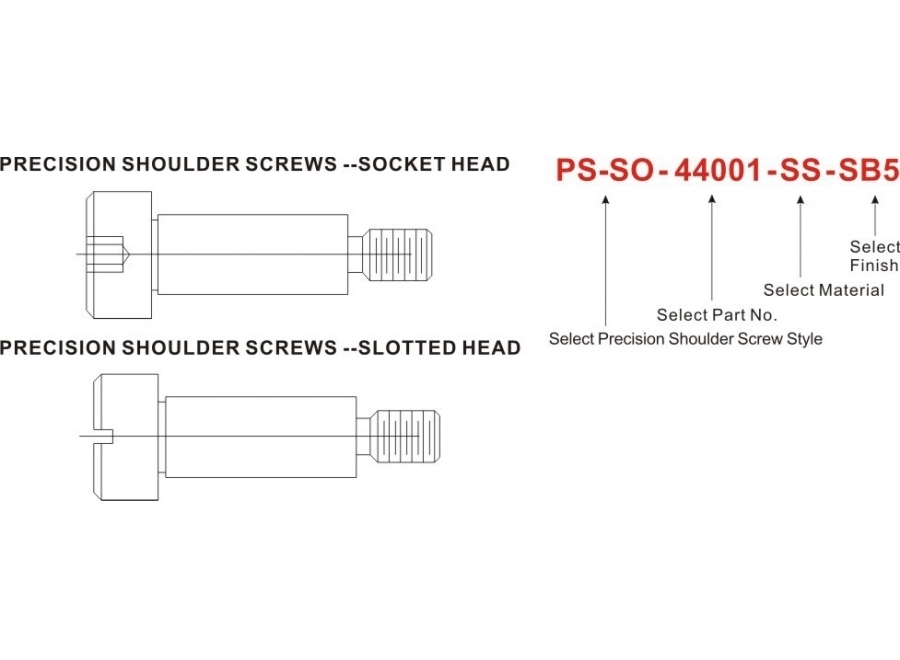

PRECISION SHOULDER SCREWS Code
Precision Shoulder Screws Socket Head PS-SO
Precision Shoulder Screws Slotted Head PS-SL

Material Description Code
Brass B
Carbon Steel S
300 Series Stainless Steel SS

Finish Description Code
Nickel Plate S1
Chrome Plate S2
Satin Chrome S6
Zinc Plate S10
Zinc Yellow Chromate S11
Black Oxide S22
Black Zinc S23
Tin Plated S24
No Finish S14
Passivate SB5

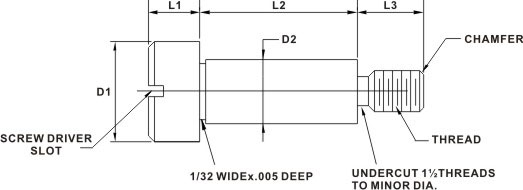

Part No. Thread
Size		 D1
+.004
-004		 D2
+.000
-.001		 L1
+.010
-.010		 L2
+.002
-.000		 L3
+.005
-.005
PS-SL-44001 4-40 1/4 .1245 1/8 .1250 5/32
PS-SL-44002 4-40 1/4 .1245 1/8 .1875 5/32
PS-SL-44003 4-40 1/4 .1245 1/8 .2500 5/32
PS-SL-44004 4-40 1/4 .1245 1/8 .3125 5/32
PS-SL-44005 4-40 1/4 .1245 1/8 .3750 5/32
PS-SL-44006 4-40 1/4 .1245 1/8 .4375 5/32
PS-SL-44007 4-40 1/4 .1245 1/8 .5000 5/32
PS-SL-63201 6-32 9/32 .1560 1/8 .1250 3/16
PS-SL-63202 6-32 9/32 .1560 1/8 .1875 3/16
PS-SL-63203 6-32 9/32 .1560 1/8 .2500 3/16
PS-SL-63204 6-32 9/32 .1560 1/8 .3125 3/16
PS-SL-63205 6-32 9/32 .1560 1/8 .3750 3/16
PS-SL-63206 6-32 9/32 .1560 1/8 .4375 3/16
PS-SL-63207 6-32 9/32 .1560 1/8 .5000 3/16
PS-SL-63208 6-32 9/32 .1560 1/8 .5625 3/16
PS-SL-63209 6-32 9/32 .1560 1/8 .6250 3/16
PS-SL-63210 6-32 9/32 .1560 1/8 .6875 3/16
PS-SL-63211 6-32 9/32 .1560 1/8 .7500 3/16
PS-SL-83201 8-32 5/16 .1870 5/32 .1250 3/16
PS-SL-83202 8-32 5/16 .1870 5/32 .1875 3/16
PS-SL-83203 8-32 5/16 .1870 5/32 .2500 3/16
PS-SL-83204 8-32 5/16 .1870 5/32 .3125 3/16
PS-SL-83205 8-32 5/16 .1870 5/32 .3750 3/16
PS-SL-83206 8-32 5/16 .1870 5/32 .4375 3/16
PS-SL-83207 8-32 5/16 .1870 5/32 .5000 3/16
PS-SL-83208 8-32 5/16 .1870 5/32 .5625 3/16
PS-SL-83209 8-32 5/16 .1870 5/32 .6250 3/16
PS-SL-83210 8-32 5/16 .1870 5/32 .6875 3/16
PS-SL-83211 8-32 5/16 .1870 5/32 .7500 3/16
PS-SL-83212 8-32 5/16 .1870 5/32 .8750 3/16
PS-SL-83213 8-32 5/16 .1870 5/32 1.000 3/16
PS-SL-83214 8-32 5/16 .1870 5/32 1.250 3/16
PS-SL-83215 8-32 5/16 .1870 5/32 1.375 3/16
PS-SL-83216 8-32 5/16 .1870 5/32 1.500 3/16
