| Matreial Description |
Code |
| Round |
Square |
Hex |
| Carbon Steel |
MS1 |
MS2 |
MS3 |
| 300 Series Stainless Steel |
MSS1 |
MSS2 |
MSS3 |
| Aluminum |
MA1 |
MA2 |
MA3 |
| Brass |
MB1 |
MB2 |
MB3 |
| Nylon |
MN1 |
MN2 |
MN3 |
|
|

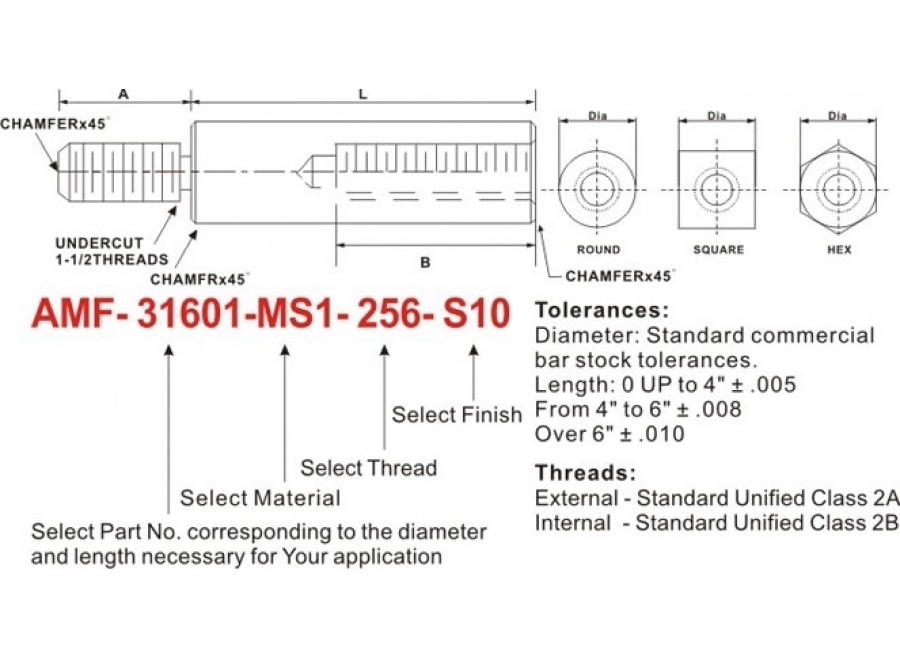

| Code |
Thread |
A |
B |
| 256 |
2-56 |
5/32 |
3/16 |
| 440 |
4-40 |
3/16 |
1/4 |
| 632 |
6-32 |
1/4 |
3/8 |
| 832 |
8-32 |
3/8 |
7/16 |
| 1032 |
10-32 |
3/8 |
1/2 |
| 1224 |
12-24 |
1/2 |
9/16 |
| 1420 |
1/4-20 |
1/2 |
9/16 |
| 51618 |
5/16-18 |
9/16 |
9/16 |
Lengths "B" will be tapped to maximum depth. |
|
| Finish Description |
Code |
| Nickel Plate |
S1 |
| Chrome Plate |
S2 |
| Satin Chrome |
S6 |
| Zinc Plate |
S10 |
| Zinc Yellow Chromate |
S11 |
| No Finish |
S14 |
| Black Oxide |
S22 |
| Black Zinc |
S23 |
| Passivate |
SB5 |
| Anodize Clear |
SA1 |
| Glossy Anodize Clear |
SA2 |
| Anodize Black |
SA3 |
| Glossy Anodize Black |
SA4 |
| Clear Iridite |
SA5 |
|
