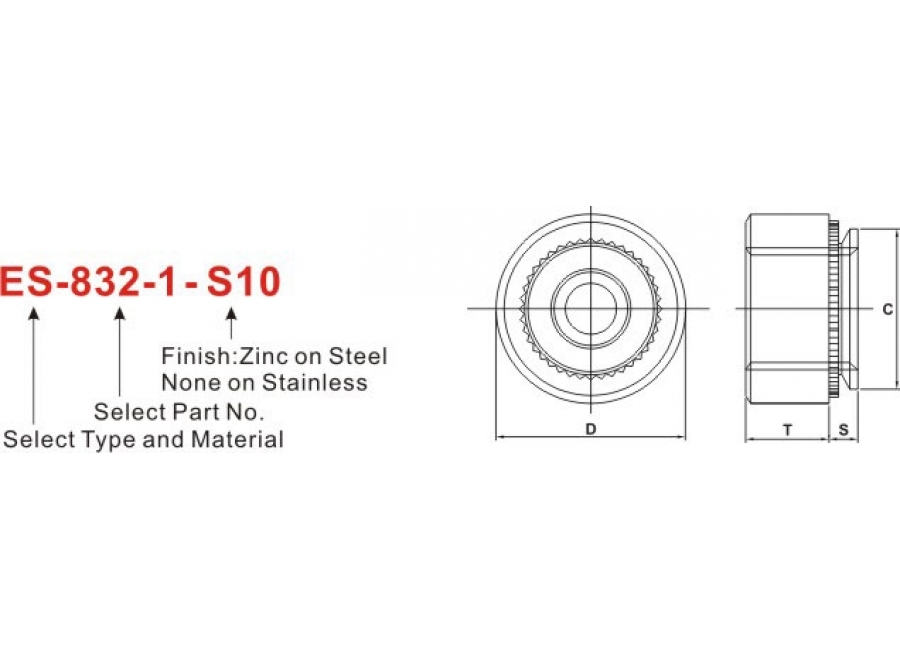

| Type |
Part No. |
Thread
Size |
S
Max. |
Min.Sheet
Thickness |
Hole Size
In Sheet
+.003
-.000 |
C
Max. |
D
±.010 |
T
±.010 |
Min. distance
centre line hole
to sheet edge |
| Material |
Carbon
Steel |
Stainless
Steel |
| ES |
ELCS |
M2-0 |
M2x0.4 |
0.77 |
0.8 |
4.22 |
4.2 |
6.3 |
1.5 |
4.8 |
| M2-1 |
0.97 |
1 |
| M2-2 |
1.38 |
1.4 |
| ES |
ELCS |
M2.5-0 |
M2.5x0.45 |
0.77 |
0.8 |
4.22 |
4.2 |
6.3 |
1.5 |
4.8 |
| M2.5-1 |
0.97 |
1 |
| M2.5-2 |
1.38 |
1.4 |
| ES |
ELCS |
M3-0 |
M3x0.5 |
0.77 |
0.8 |
4.22 |
4.2 |
6.3 |
1.5 |
4.8 |
| M3-1 |
0.97 |
1 |
| M3-2 |
1.38 |
1.4 |
| ES |
ELCS |
M3.5-0 |
M3.5x0.6 |
0.77 |
0.8 |
4.75 |
4.73 |
7.1 |
1.5 |
5.6 |
| M3-1 |
0.97 |
1 |
| M3-2 |
1.38 |
1.4 |
| ES |
ELCS |
M4-0 |
M4x0.7 |
0.77 |
0.8 |
5.41 |
5.38 |
7.9 |
2 |
6.9 |
| M4-1 |
0.97 |
1 |
| M4-2 |
1.38 |
1.4 |
| ES |
ELCS |
M5-0 |
M5x0.8 |
0.77 |
0.8 |
6.35 |
6.33 |
8.7 |
2 |
7.1 |
| M5-1 |
0.97 |
1 |
| M5-2 |
1.38 |
1.4 |
| ES |
ELCS |
M6-0 |
M6x1.0 |
0.89 |
0.92 |
8.75 |
8.73 |
11.05 |
4.08 |
8.6 |
| M6-1 |
1.15 |
1.2 |
| M6-2 |
1.38 |
1.4 |
| M6-3 |
2.21 |
2.3 |
| ES |
ELCS |
M8-1 |
M8x1.25 |
1.38 |
1.4 |
10.5 |
10.47 |
12.65 |
5.47 |
9.7 |
| M8-2 |
2.21 |
2.3 |
| ES |
ELCS |
M10-1 |
M10x1.5 |
2.21 |
2.31 |
14 |
13.97 |
17.35 |
7.48 |
13.5 |
| M10-2 |
3.05 |
3.18 |
|
| ◎ Type ES and ESS are recommended for use in steel or aluminum sheet HRB 75~80 or less. |
| ◎ Type ECLS and ECLSS are recommended for use in steel or aluminum sheet HRB 65~70 or less. |
