PRECISION SHOULDER SCREWS SLOTTED HEAD (American Standard)

产品介绍

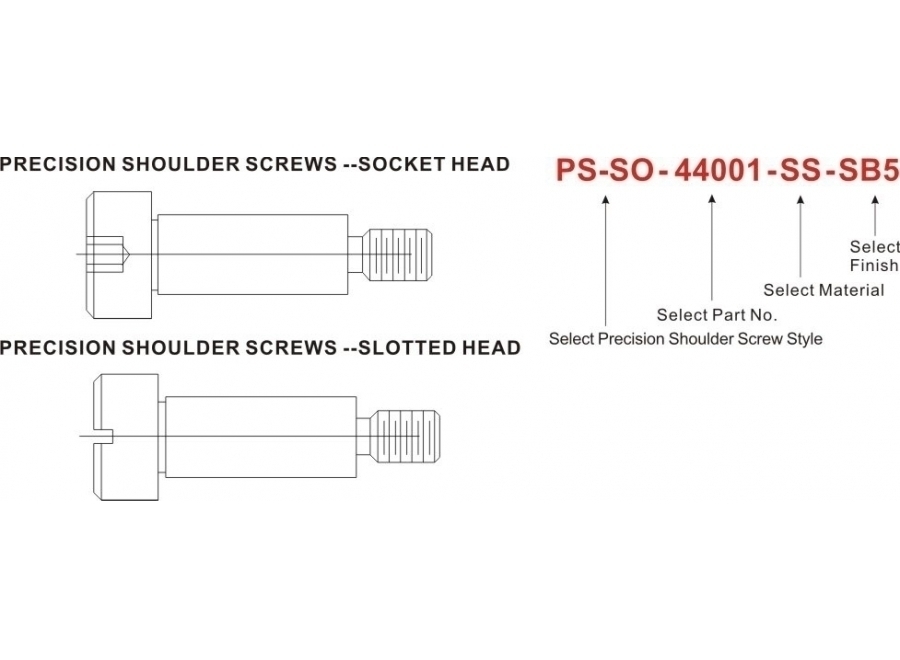

PRECISION SHOULDER SCREWS	Code
Precision Shoulder Screws Socket Head	PS-SO
Precision Shoulder Screws Slotted Head	PS-SL

Material Description	Code
Brass	B
Carbon Steel	S
300 Series Stainless Steel	SS

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
Black Oxide	S22
Black Zinc	S23
Tin Plated	S24
No Finish	S14
Passivate	SB5

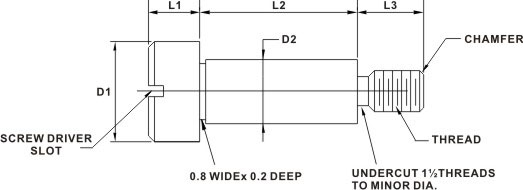

Part No.	Thread Size	D1 +0.10 -0.10	D2 +0.000 -0.026	L1 +0.25 -0.25	L2 +0.053 -0.000	L3 +0.13 -0.13
PS-SL-M501	M5x0.8	10	6.34	4.8	3.18	6.3
PS-SL-M502	M5x0.8	10	6.34	4.8	4.76	6.3
PS-SL-M503	M5x0.8	10	6.34	4.8	6.35	6.3
PS-SL-M504	M5x0.8	10	6.34	4.8	7.94	6.3
PS-SL-M505	M5x0.8	10	6.34	4.8	9.52	6.3
PS-SL-M506	M5x0.8	10	6.34	4.8	11.11	6.3
PS-SL-M507	M5x0.8	10	6.34	4.8	12.70	6.3
PS-SL-M508	M5x0.8	10	6.34	4.8	14.29	6.3
PS-SL-M509	M5x0.8	10	6.34	4.8	15.87	6.3
PS-SL-M510	M5x0.8	10	6.34	4.8	17.46	6.3
PS-SL-M511	M5x0.8	10	6.34	4.8	19.05	6.3
PS-SL-M512	M5x0.8	10	6.34	4.8	22.22	6.3
PS-SL-M513	M5x0.8	10	6.34	4.8	25.40	6.3
PS-SL-M601	M6x1.0	11	7.93	5.5	6.35	9.4
PS-SL-M602	M6x1.0	11	7.93	5.5	9.52	9.4
PS-SL-M603	M6x1.0	11	7.93	5.5	12.70	9.4
PS-SL-M604	M6x1.0	11	7.93	5.5	14.29	9.4
PS-SL-M605	M6x1.0	11	7.93	5.5	19.05	9.4
PS-SL-M606	M6x1.0	11	7.93	5.5	22.22	9.4
PS-SL-M607	M6x1.0	11	7.93	5.5	25.40	9.4
PS-SL-M608	M6x1.0	13	9.51	5.5	6.35	9.4
PS-SL-M609	M6x1.0	13	9.51	5.5	9.52	9.4
PS-SL-M610	M6x1.0	13	9.51	5.5	12.70	9.4
PS-SL-M611	M6x1.0	13	9.51	5.5	14.29	9.4
PS-SL-M612	M6x1.0	13	9.51	5.5	19.05	9.4
PS-SL-M613	M6x1.0	13	9.51	5.5	22.22	9.4
PS-SL-M614	M6x1.0	13	9.51	5.5	25.40	9.4
