PUSH TYPE THUMB SCREWS (Metric Standard)

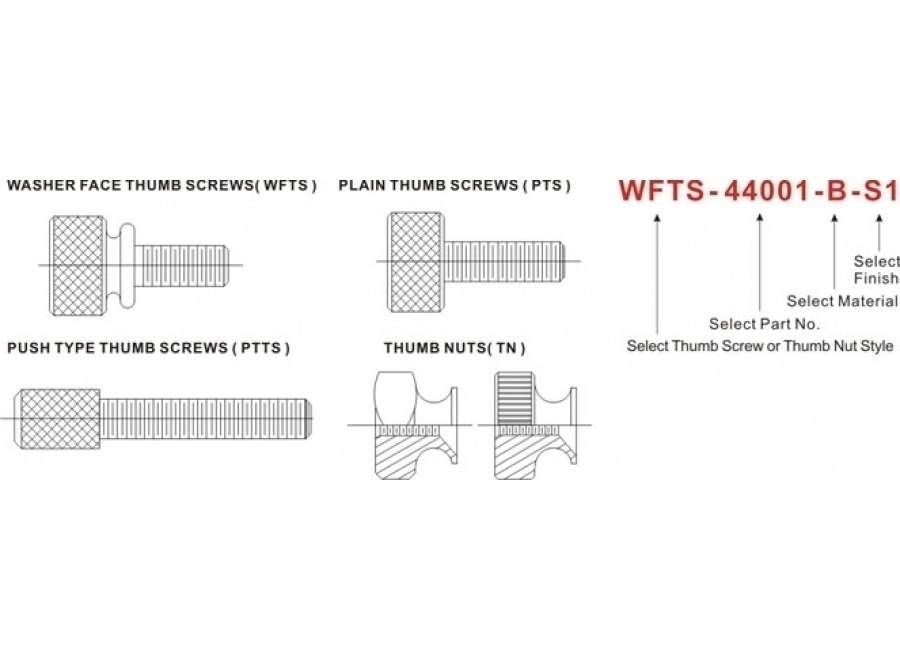

Description

Thumb Screw & Thumb Nut	Code
Washer Face Thumb Svrews	WFTS
Plain Thumb Screws	PTS
Push Type Thumb Screws	PTTS
Thumb Nuts ( Round )	TN-R
Thumb Nuts ( Hex )	TN-H

Material Description	Code
Aluminum	A
Brass	B
Carbon Steel	S
300 Series Stainless Steel	SS

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
Black Oxide	S22
Black Zinc	S23
Tin Plated	S24
No Finish	S14
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

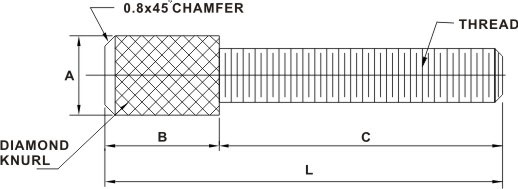

Part No.	Thread Size	A +0.50 -0.50	B +0.50 -0.50	C +0.50 -0.50	L +0.50 -0.50
PTTS-M501	M5x0.8	6.5	13	16	25
PTTS-M502	M5x0.8	6.5	13	19	28
PTTS-M503	M5x0.8	6.5	13	22	31
PTTS-M504	M5x0.8	6.5	13	25	34
PTTS-M505	M5x0.8	6.5	13	28	37
PTTS-M506	M5x0.8	6.5	13	31	40
PTTS-M507	M5x0.8	6.5	13	34	43
PTTS-M508	M5x0.8	6.5	13	37	46
PTTS-M509	M5x0.8	6.5	13	40	49
PTTS-M510	M5x0.8	6.5	13	43	52
PTTS-M511	M5x0.8	6.5	13	46	55
PTTS-M512	M5x0.8	6.5	13	49	58
PTTS-M601	M6x1.0	8-32	13	16	25
PTTS-M602	M6x1.0	8-32	13	19	28
PTTS-M603	M6x1.0	8-32	13	22	31
PTTS-M604	M6x1.0	8-32	13	25	34
PTTS-M605	M6x1.0	8-32	13	28	37
PTTS-M606	M6x1.0	8-32	13	31	40
PTTS-M607	M6x1.0	8-32	13	34	43
PTTS-M608	M6x1.0	8-32	13	37	46
PTTS-M609	M6x1.0	8-32	13	40	49
PTTS-M610	M6x1.0	8-32	13	43	52
PTTS-M611	M6x1.0	8-32	13	46	55
PTTS-M612	M6x1.0	8-32	13	49	58
