PUSH TYPE THUMB SCREWS (Metric Standard)

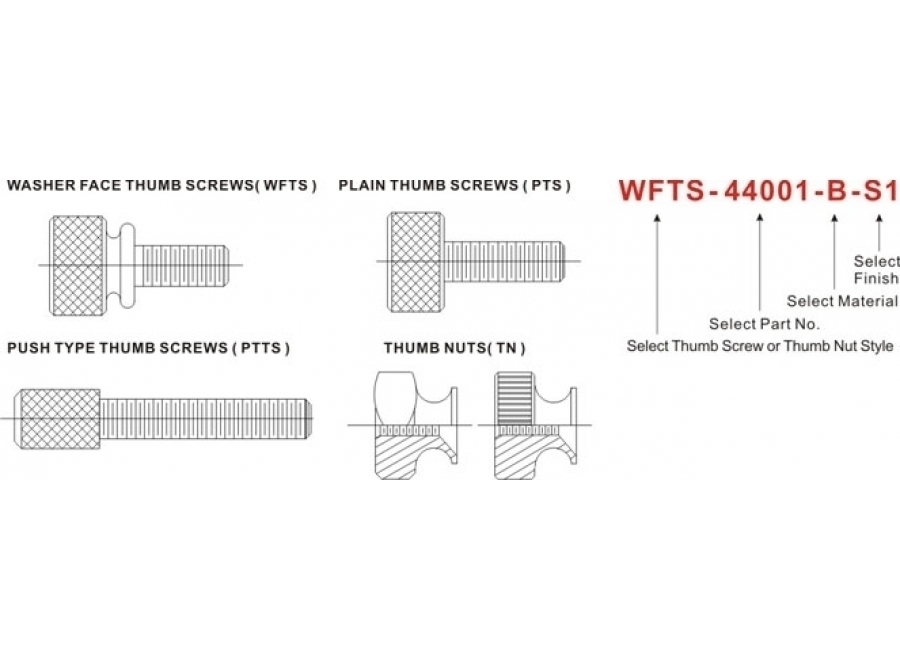

Description

Thumb Screw & Thumb Nut	Code
Washer Face Thumb Svrews	WFTS
Plain Thumb Screws	PTS
Push Type Thumb Screws	PTTS
Thumb Nuts ( Round )	TN-R
Thumb Nuts ( Hex )	TN-H

Material Description	Code
Aluminum	A
Brass	B
Carbon Steel	S
300 Series Stainless Steel	SS

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
Black Oxide	S22
Black Zinc	S23
Tin Plated	S24
No Finish	S14
Passivate	SB5
Anodize Clear	SA1
Glossy Anodize Clear	SA2
Anodize Black	SA3
Glossy Anodize Black	SA4
Clear Iridite	SA5

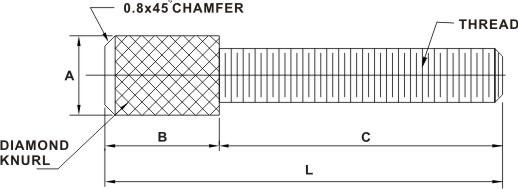

Part No.	Thread Size	A +0.50 -0.50	B +0.50 -0.50	C +0.50 -0.50	L +0.50 -0.50
PTTS-M3.501	M3.5x0.6	4.5	9	16	25
PTTS-M3.502	M3.5x0.6	4.5	9	19	28
PTTS-M3.503	M3.5x0.6	4.5	9	22	31
PTTS-M3.504	M3.5x0.6	4.5	9	25	34
PTTS-M3.505	M3.5x0.6	4.5	9	28	37
PTTS-M3.506	M3.5x0.6	4.5	9	31	40
PTTS-M3.507	M3.5x0.6	4.5	9	34	43
PTTS-M3.508	M3.5x0.6	4.5	9	37	46
PTTS-M3.509	M3.5x0.6	4.5	9	40	49
PTTS-M3.510	M3.5x0.6	4.5	9	43	52
PTTS-M3.511	M3.5x0.6	4.5	9	46	55
PTTS-M3.512	M3.5x0.6	4.5	9	49	58
PTTS-M401	M4x0.7	4.5	9	16	25
PTTS-M402	M4x0.7	4.5	9	19	28
PTTS-M403	M4x0.7	4.5	9	22	31
PTTS-M404	M4x0.7	4.5	9	25	34
PTTS-M405	M4x0.7	4.5	9	28	37
PTTS-M406	M4x0.7	4.5	9	31	40
PTTS-M407	M4x0.7	4.5	9	34	43
PTTS-M408	M4x0.7	4.5	9	37	46
PTTS-M409	M4x0.7	4.5	9	40	49
PTTS-M410	M4x0.7	4.5	9	43	52
PTTS-M411	M4x0.7	4.5	9	46	55
PTTS-M412	M4x0.7	4.5	9	49	58
