CAPTIVE PANEL SCREW STYLE 6

Description

Cpative Panel Screw	Code
Style 1	CPS1
Style 2	CPS2
Style 3	CPS3
Style 4	CPS4
Style 5	CPS5
Style 6	CPS6

Material Description	Code
Brass	B
Carbon Steel	S
300 Series Stainless Steel	S

Finish Description	Code
Nickel Plate	S1
Chrome Plate	S2
Satin Chrome	S6
Zinc Plate	S10
Zinc Yellow Chromate	S11
Black Oxide	S22
Black Zinc	S23
Tin Plated	S24
No Finish	S14
Passivate	SB5

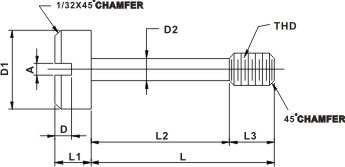

Part No.	Thread	D1 +.015 -.000	L1 +.015 -.000	D2 +.015 -.000	L +.015 -.000	L2 +.015 -.000	L3 +.015 -.000	A +.015 -.000	B +.015 -.000
CPS6-44001	4-40	1/4	1/8	.078	15/32	9/32	3/16	3/64	3/64
CPS6-44002	4-40	1/4	1/8	.078	17/32	11/32	3/16	3/64	3/64
CPS6-63201	6-32	9/32	1/8	.095	17/32	5/16	7/32	3/64	5/64
CPS6-63202	6-32	9/32	1/8	.095	19/32	3/8	7/32	3/64	5/64
CPS6-63203	6-32	9/32	1/8	.095	21/32	7/16	7/32	3/64	5/64
CPS6-83201	8-32	5/16	5/32	.120	21/32	13/32	1/4	1/16	1/16
CPS6-83202	8-32	5/16	5/32	.120	23/32	15/32	1/4	1/16	1/16
CPS6-83203	8-32	5/16	5/32	.120	25/32	17/32	1/4	1/16	1/16
CPS6-103201	10-32	3/8	3/16	.130	27/32	17/32	5/16	1/16	1/16
CPS6-103202	10-32	3/8	3/16	.130	29/32	19/32	5/16	1/16	1/16
